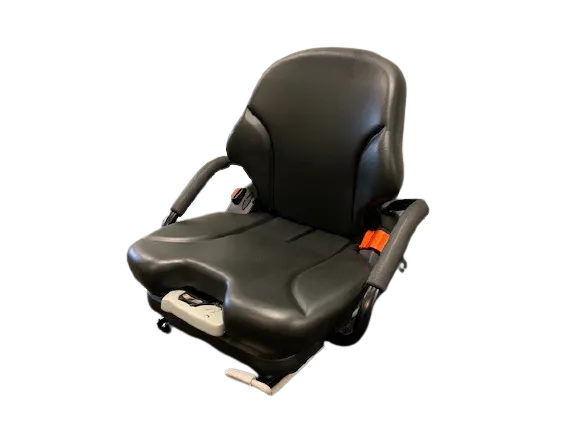

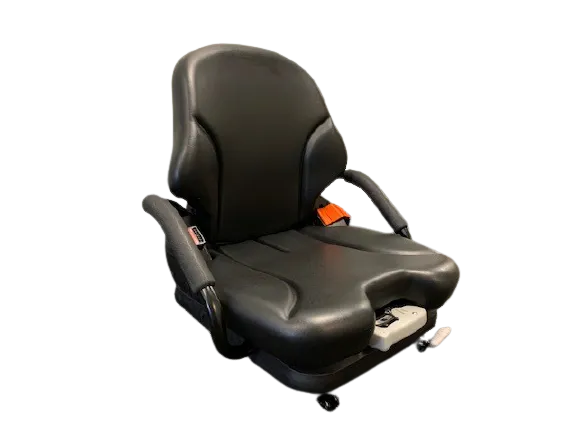

This replacement suspension seat is a direct bolt-in option for factory suspension seats on Doosan forklifts. It features an OPS switch (splicing may be required) and a 2PT retractable seat belt. The suspension stroke is up to 2.4 inches (60 mm), with a weight adjustment range of 100-375 lbs (45-170 kg) and fore/aft slide adjustment. Additionally, it includes adjustable lumbar support for enhanced comfort.
Features:
- 13" wide slide mounting
- OPS switch (splicing may be required)
- 2PT retractable seat belt
- Suspension stroke up to 2.4 in / 60 mm
- Weight adjustment range of 100-375 lbs / 45-170 kg
- Fore/aft slide adjustment
- Adjustable lumbar support

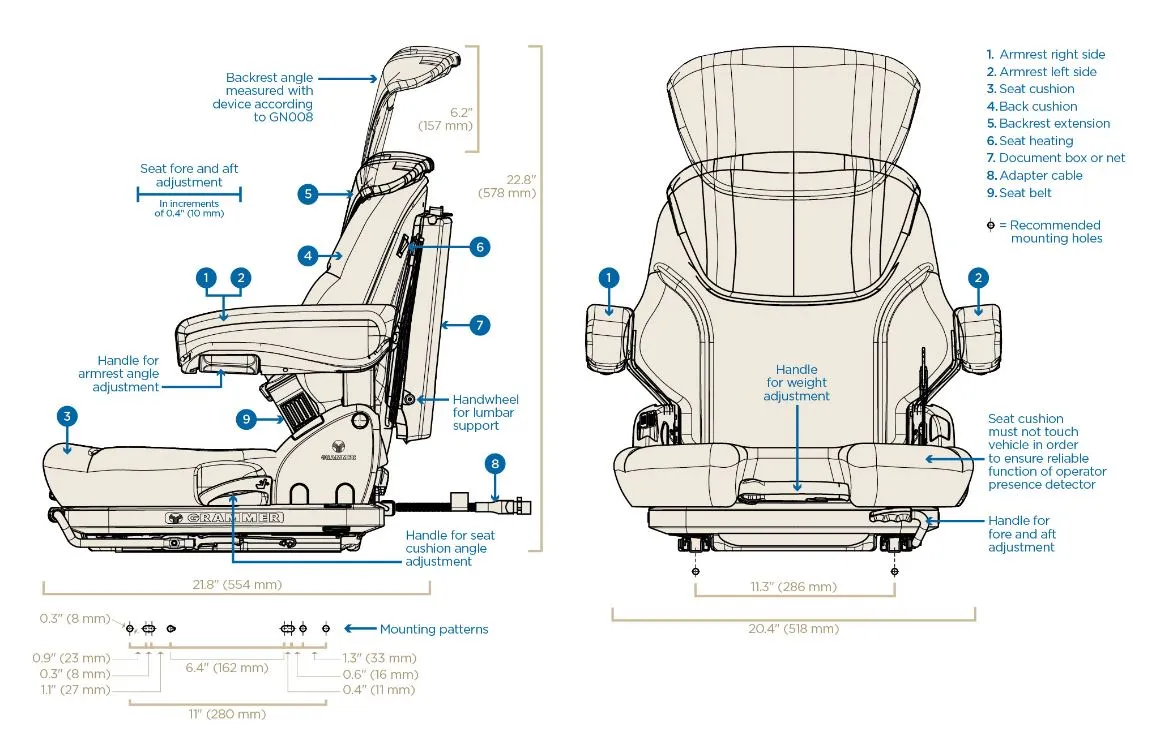

Mounting Patterns:
- 11.25" x 6.4"
- 11.25" x 10.39"
- 11.25" x 10.59"
- 11.25" x 11.02"
